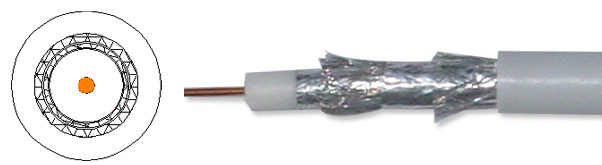

RG6
(QUAD)
|
Description
|
||
Rated Temperature |
75o |
|
| Standard: |
ML-C-17G | |
Conductor: |
Solid Bare copper(CCS) |
|
Insulation: |
Foam PE |
|
Braiding Shield 1: |
AL-foil(Bonded)+ Al-Mg Braiding(60%) |
|
| Braiding Shield 2: | AL-foil(Double)+ Al-Mg Braiding(40%) | |
Jacket: |
PVC |
|
Electrical Characteristic |
||
1.0-3000.0MHz Impedance (ohms) |
75Ω +/-3Ω |
|
| Nominal Capacitance |
16.2 pF/ft |
|
| Conductor to Shield |
53.1 pF/ft |
|
Core dielectric(kv) |
≥1.0 |
|
Insulation Resistance (MΩ*km) |
≥5000 |
|
Jacket dielectric (kv) |
≥3.0 |
|
Application |
||
Frequeney MHz |
Attenuation dB/100m |
Frequeney MHz |
Return loss dB |
1 |
1.21 |
5-470 |
≥26 |
50 |
4.62 |
||
200 |
8.66 |
470-860 |
≥24 |
700 |
16.56 |
||
1000 |
18.99 |
860-3000 |
≥22 |
1450 |
24.57 |
||
1800 |
27.65 |
||
2200 |
30.67 |
||
2500 |
33.72 |
||
3000 |
37.33 |
