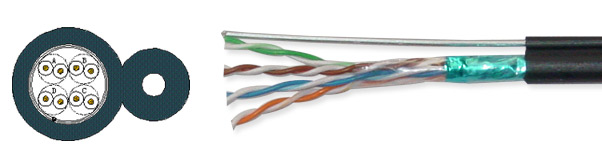

CAT5e_FTP_with messenger |
Description
|
||
Rated Temperature |
75o |
|
Standard: |
UL444,TIA/EIA568A,YD/T1019-2001 |
|
Conductor: |
Solid Bare copper |
|
Insulation: |
HDPE |
|
Twisted pair |
Four |
|
Jacket: |
Pe-Tape + LLDPE |
|
Rip cord: |
Per request |
|
Electrical Characteristic |
||
1.0-100.0MHz Impedance (ohms) |
100 ohm+/- 15 ohm |
|
1.0-350.0MHz Delay Skew (ns/100m) |
<=45 |
|
Pair-to-Ground Capacitance Unbalance (pF/100m) |
<=330 |
|
Max. Conductor DC Resistance 20oC (ohms/km) |
93.8 |
|
Resistance Unbalance (%) |
<=5 |
|
Application |
||
100 Base-T4 |
||
100 Bsdr-TX |
||
100 VG-AnyLAN |
||
155 Mbps ATM |
||
622 Mbps ATM |
||
| Cat 5e Cable Electrical Characteristics | |||||||
Frequeney MHz |
Impedance ohm |
RL dB |
Attenuation dB/100m |
Next dB |
Elfext dB |
Psnext dB |
Delay Ns/100m |
0.772 |
100+/-15
|
19.4 |
1.8 |
67.0 |
64.0 |
66.0 |
574 |
1.0 |
20.0 |
2.0 |
65.3 |
62.3 |
63.8 |
570 |
|
4.0 |
23.0 |
4.1 |
56.3 |
53.3 |
51.7 |
552 |
|
8.0 |
24.5 |
5.8 |
51.8 |
48.8 |
45.7 |
546 |
|
10.0 |
25.0 |
6.5 |
50.3 |
47.3 |
43.8 |
545 |
|
16.0 |
25.0 |
8.2 |
47.3 |
44.3 |
39.7 |
543 |
|
20.0 |
25.0 |
9.3 |
45.8 |
42.8 |
37.7 |
542 |
|
25.0 |
24.3 |
10.4 |
44.3 |
41.3 |
35.8 |
541 |
|
31.3 |
23.6 |
11.7 |
42.9 |
39.9 |
33.9 |
540 |
|
62.5 |
21.5 |
17.0 |
38.4 |
35.4 |
27.8 |
538 |
|
100.0 |
20.1 |
22.0 |
35.3 |
32.3 |
23.8 |
537 |
|
