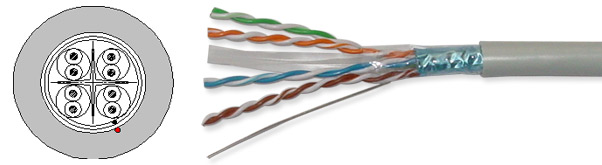

FTP CAT6
|
Description |
||
Rated Temperature |
75o |
|
Standard: |
UL444,TIA/EIA568B.2,YD/T1019-2001 |
|
Conductor: |
Solid Bare copper |
|
AWG: |
4X2X23 |
|
Shield: |
Pe-tap + AL Foil + pe-tap |
|
Insulation: |
HDPE |
|
Separator: |
PP |
|
Drain wire: |
Solid Tinned copper |
|
Jacket: |
PVC |
|
Rip cord: |
Per request |
|
Electrical Characteristic |
||
1.0-100.0MHz Impedance (ohms) |
100+/-15 |
|
1.0-350.0MHz Delay Skew (ns/ |
<=45 |
|
Pair-to-Ground Capacitance Unbalance (pF/ |
<=330 |
|
Max. Conductor DC Resistance 20oC (ohms/km) |
6.58 |
|
Application |
||
100 Base-T4 |
||
| 100 Bsdr-TX |
||
| 100 VG-AnyLAN |
||
| 155 Mbps ATM |
||
622 Mbps ATM |
||
| Electrical Characteristics | |||||||
Frequeney MHz |
Impedance ohm |
RL dB |
Attenuation dB/100m |
Next dB |
Psnext dB |
Elfext dB |
Pselfext dB |
0.772 |
100+/-15
|
19.4 | 1.8 | 76.0 | 74.0 | 70.0 | 67.0 |
1.0 |
23.0 | 3.8 | 74.3 | 72.3 | 67.8 | 64.8 | |
4.0 |
23.0 | 3.8 | 65.3 | 63.3 | 55.7 | 52.8 | |
8.0 |
24.5 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | |
10.0 |
25.0 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 | |
16.0 |
25.0 | 7.6 | 56.2 | 54.3 | 43.7 | 40.7 | |
20.0 |
25.0 | 8.5 | 54.8 | 52.8 | 41.7 | 38.8 | |
25.0 |
24.3 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | |
31.3 |
23.6 |
10.7 | 51.9 | 49.9 | 37.9 | 34.9 | |
62.5 |
21.5 | 15.4 | 47.4 | 45.4 | 31.8 | 28.9 | |
100.0 |
20.1 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | |
200.0 |
18.0 | 29.0 | 39.8 | 37.8 | 21.8 | 18.8 | |
250.0 |
17.3 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | |
