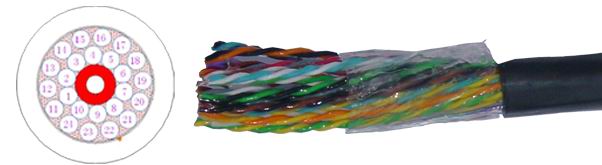

| Description |
| Rated Temperature |
75oC |
| Standard: |
UL444,TIA/EIA568A,YD/T1019-2001 |
| Conductor: |
Solid Bare copper |
| AWG |
24 |
| Insulation: |
HDPE |
| Twisted pair |
Twenty four |
| Filled |
Gel |
| Jacket: |
LLDPE |
| Rip cord: |
Per request |
| Electrical Characteristic |
|
| 1.0-100.0MHz Impedance (ohms) |
100 ohm+/- 15 ohm |
| 1.0-350.0MHz Delay Skew (ns/100m) |
<=45 |
| Pair-to-Ground Capacitance Unbalance (pF/100m) |
<=330 |
| Max. Conductor DC Resistance 20oC (ohms/km) |
93.8 |
| Resistance Unbalance (%) |
<=5 |
|
|
| Application |
|
| |
Packing
305m/ Wooden drum
500m/ Wooden drum |
|
| 100 Base-T4 |
| 100 Bsdr-TX |
| 100 VG-AnyLAN |
| 155 Mbps ATM |
| 622 Mbps ATM |
