| Part No. |
Cable Def. |
Description |
Nom.Imp. |
Nom.Vel.of Prop% |
Nom.Cap. pF/M |
| OHM |
|
|
| 74TC1120 |
|
Conductor:@0.813MM Bare Copper |
53.25±2.5 |
66 |
93.5 |
|

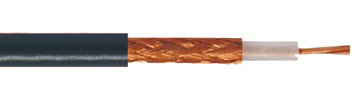

RG58 |
Insulation:@2.95MM Solid P.E. |
|
|
|
|
|
Shielding:@0.12MM X 112 B.C.Braid |
|
|
|
|
|
Jacket:@4.95MM P.V.C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Part No. |
Cable Def. |
Description |
Nom.Imp. |
Nom.Vel.of Prop% |
Nom.Cap. pF/M |
| OHM |
|
|
| 74TC1121 |
|
Conductor:@0.18MM X 19 T.C. Stranding Wire |
50±2.5 |
66 |
93.5 |
|
RG58 A/U |
Insulation:@2.95MM Solid P.E. |
|
|
|
|
|
Shielding:@0.12MM X 112 B.C.Braid |
|
|
|
|
|
Jacket:@4.95MM P.V.C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Part No. |
Cable Def. |
Description |
Nom.Imp. |
Nom.Vel.of Prop% |
Nom.Cap. pF/M |
| OHM |
|
|
| 74TC1122 |
|
Conductor:@0.59MM Copper Clad Steel |
75±3 |
66 |
68.9 |
|

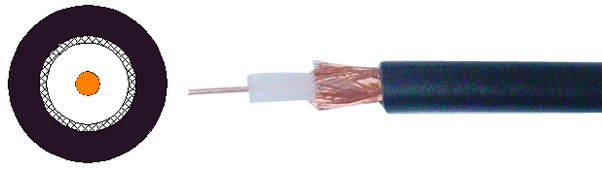

RG59 B/U |
Insulation:@2.95MM Solid P.E. |
|
|
|
|
|
Shielding:@0.16MM X 112 B.C.Braid |
|
|
|
|
|
Jacket:@6.15MM P.V.C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Part No. |
Cable Def. |
Description |
Nom.Imp. |
Nom.Vel.of Prop% |
Nom.Cap. pF/M |
| OHM |
|
|
| 74TC1123 |
 |
Conductor:@0.16MM X 7 B.C.Stranding Wire |
50±2.5 |
66 |
110 |
|

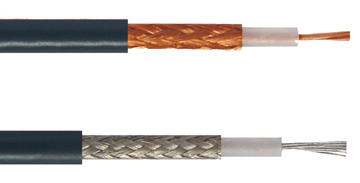

RG174 A/U |
Insulation:@1.52MM Solid P.E. |
|
|
|
|
|
Shielding:@0.10MM X 64 T.C.Braid |
|
|
|
|
|
Jacket:@4.50MM P.V.C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
