| Part No. |
Cable Def. |
Description |
Nom.Imp. |
Nom.Vel.of Prop% |
Nom.Cap. pF/M |
| OHM |
|
|
| SK7TC001 |
|
Conductor:@0.20MM X 7 B.C.Stranding Wire |
75±4 |
|
56.7 |
|
 |
Insulation:@2.50MM Solid P.E. |
|
|
|
|
BT2001 |
Shielding:@0.15MM X 80 B.C.Braid |
|
|
|
|
|
Jacket:@4.50MM P.V.C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Part No. |
Cable Def. |
Description |
Nom.Imp. |
Nom.Vel.of Prop% |
Nom.Cap. pF/M |
| OHM |
|
|
| SK7TC002 |
|
Conductor:@0.20MM X 7 B.C.Stranding Wire |
75±4 |
|
56.7 |
|
|
Insulation:@2.50MM Solid P.E. |
|
|
|
|
BT2002 |
Shielding:@0.15MM X 80 B.C.Braid+0.15MM X 120 B.C.Braid |
|
|
|
|
|
Jacket:@4.50MM P.V.C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Part No. |
Cable Def. |
Description |
Nom.Imp. |
Nom.Vel.of Prop% |
Nom.Cap. pF/M |
| OHM |
|
|
| SK7TC003 |
|
Conductor:@0.61MM Bare Copper |
75±3 |
|
68.5 |
|
|
Insulation:@3.80MM Solid P.E. |
|
|
|
|
BT2003 |
Shielding:@0.15MM X 120 B.C.Braid+0.15MM X 120 B.C.Braid |
|
|
|
|
|
Jacket:@6.80MM P.V.C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Part No. |
Cable Def. |
Description |
Nom.Imp. |
Nom.Vel.of Prop% |
Nom.Cap. pF/M |
| OHM |
|
|
| SK7TC004 |
|
Conductor:@0.31MM Bare Copper |
75±3 |
66 |
66 |
|
|
Insulation:@1.95MM Solid P.E. |
|
|
|
|
BT3002 |
Shielding:@0.10MM X 80 T.C.Braid+0.10MM X 96 T.C.Braid |
|
|
|
|
|
Jacket:@3.55MM P.V.C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Part No. |
Cable Def. |
Description |
Nom.Imp. |
Nom.Vel.of Prop% |
Nom.Cap. pF/M |
| OHM |
|
|

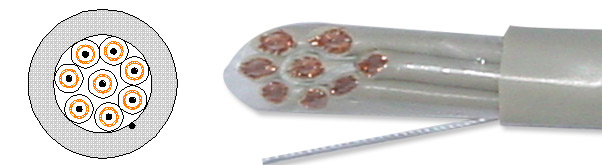

| SK7TC005 |
|
BT3002 X 8C |
75±3 |
|
66 |
|
 |
Total Jacket:14.70 +/- 0.2MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BT3002 X 8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Part No. |
Cable Def. |
Description |
Nom.Imp. |
Nom.Vel.of Prop% |
Nom.Cap. pF/M |
| OHM |
|
|

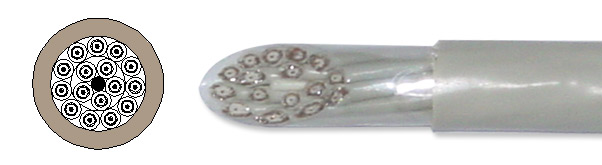

| SK7TC006 |
|
BT3002 X 16C |
75±3 |
|
66 |
|
|
Total Jacket:21.00 +/- 0.2MM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BT3002 X 16 |
|
|
|
|
